Modifying Geometry for Parameter Sweeps

OptVL not only offers aerodynamic analysis capabilities but also provides tools to access and modify geometric parameters of your aircraft models. This page shows how users can retrieve and set geometry parameters for parameter sweeps.

Getting geometry parameters

To retrieve surface parameters from your AVL model, use the get_surface_params method. By default, this method only returns data about the geometry of the surface, but information about the paneling and control surfaces can also be included by passing the corresponding flags, like so:

surf_data = ovl.get_surface_params(
    include_geom=True,
    include_paneling=True,
    include_con_surf=True
)

The data from get_surface_params come directly from the geometry file used by AVL. See the AVL user guide for more information about all the possible variables. If you only want to get a specific design variable, then you can instead use:

ovl.get_surface_param( <surf_name>, <param>)

For most use cases, you will only need to interact with the geometric variables below.

Variable	Description
scale	Scale factor.
translate	Translation vector.
angle	Surface angle.
aincs	Array of angle increments.
chords	Array of chord lengths.
xyzles	Array of leading edge coordinates.

Setting geometry parameters

To apply geometry changes to the OVLSolver object, use the set_surface_params method.

ovl_solver.set_surface_params(data)

This method sets the surface parameters of the AVL model based on the provided dictionary data. The data passed to this method must be a dictionary of surface names whose values are a dictionary of surface and section keywords. An example of such a dictionary is:

data = {
    'Wing': {
        'angle': 3.5,  # a surface keyword example
        "chords": np.array([0.5, 0.4, 0.3, 0.2, 0.1]) #section keyword example
    }
}

The structure of the data dictionary must be the same as that returned by the get_surface_params method, so I recommend calling get_surface_params and looking at the output if you get confused: Similar to the getting methods, you can also set values one at a time like so:

ovl.set_surface_param( <surf_name>, <param>, <value>)

Example modifying y scale

To increase the span of our wing, we can stretch it in the y direction by adjusting the y scale.

from optvl import OVLSolver
import numpy as np

write_tecplot_files = True

ovl_solver = OVLSolver(geo_file="aircraft.avl", debug=False, timing=False)

# set the angle of attack
ovl_solver.set_constraint("alpha", 5.00)

for idx_scale, y_scale in enumerate(np.linspace(0.5, 1.5, 5)):
    ovl_solver.set_surface_params({"Wing":{"scale":np.array([1, y_scale, 1])}})

    ovl_solver.execute_run()
    stab_derivs = ovl_solver.get_stab_derivs()

    print(f"----------------- y_scale: {y_scale} ----------------")
    for key in stab_derivs:
        print(f"{key:16}: {stab_derivs[key]:.6f}")

    if write_tecplot_files:
        # this way works on tecplot and paraview
        ovl_solver.write_tecplot(f'wing_scale_{idx_scale}')

        # Warning: The solution time does not work on paraview
        # ovl_solver.write_tecplot(f'wing_scale_{y_scale}', solution_time=idx_scale)

Example modifying the leading edge coordinates

The example below modifies the array of leading edge points to modify the planform.

from optvl import OVLSolver
import numpy as np
from pprint import pprint
import matplotlib.pyplot as plt


ovl_solver = OVLSolver(geo_file="rectangle.avl", debug=False, timing=False)

# set the angle of attack
# ovl_solver.set_constraint("alpha", 5.00)
yles = ovl_solver.get_surface_param('Wing', 'yles')
xles = ovl_solver.get_surface_param('Wing', 'xles')
zles = ovl_solver.get_surface_param('Wing', 'zles')
span = yles[-1]
relative_span = yles/span


# Parameters
# params = ['xles', 'zles', 'yles']
values = {'xles': xles, 'zles': zles, 'yles': yles}

# Loop over each parameter type
for param, value in  values.items():

    # Create subplots
    ax1 = plt.subplot(2, 1, 1)
    ax2 = plt.subplot(2, 1, 2)
    ax2.set_ylabel('Z', rotation=0)
    ax2.set_xlabel('Y')
    ax1.set_ylabel('X', rotation=0)
    ax1.set_title(f'Modifying {param}')

    # Perform parameter sweep
    for d in np.linspace(-0.33 * span, 0.33 * span, 3):
        new_value = value + d * relative_span
        ovl_solver.set_surface_param('Wing', param, new_value)
        ovl_solver.plot_geom(axes=[ax1, ax2])

    # Reset to baseline
    ovl_solver.set_surface_param('Wing', param, value)

    # Show plot
    plt.show()

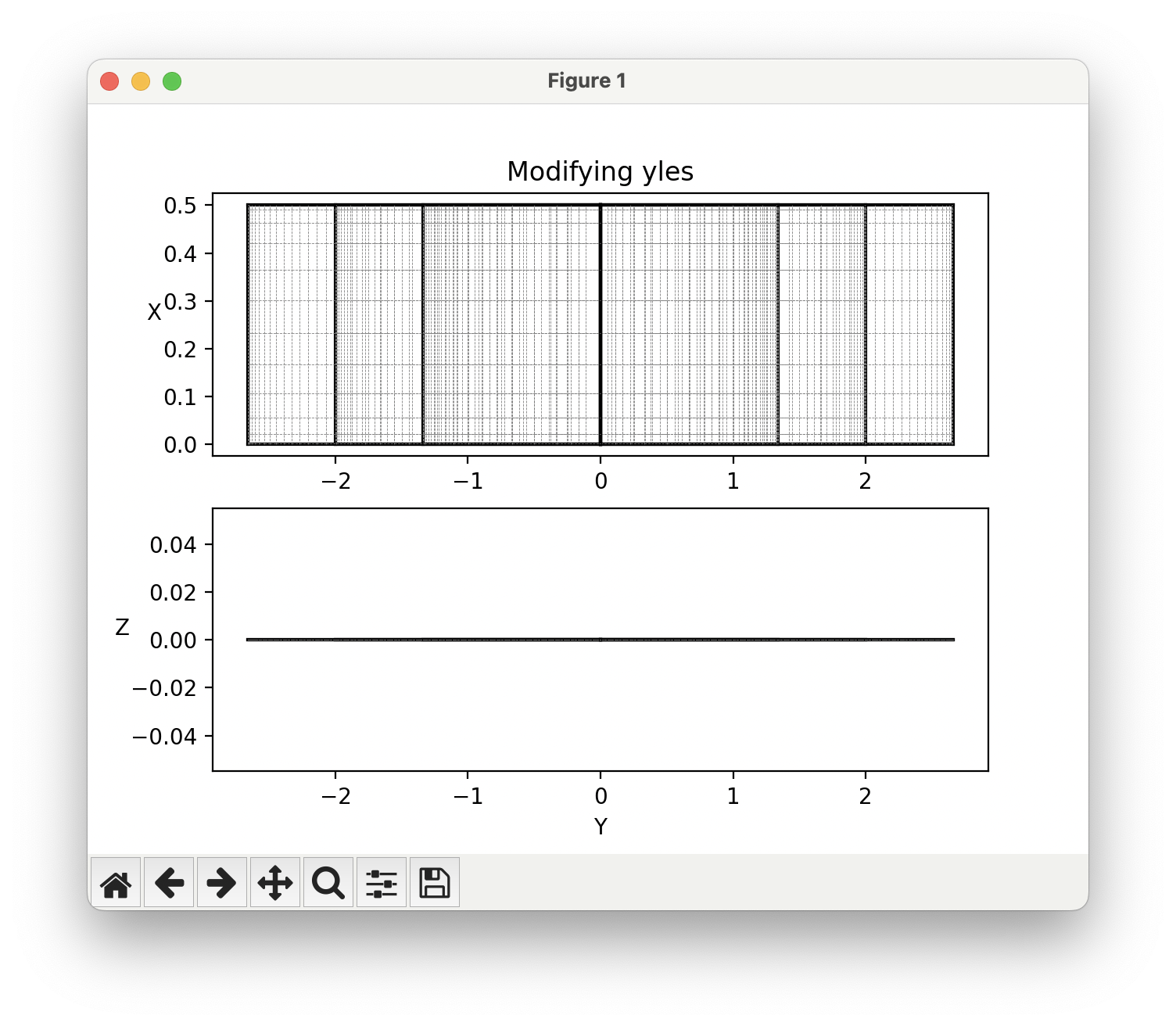

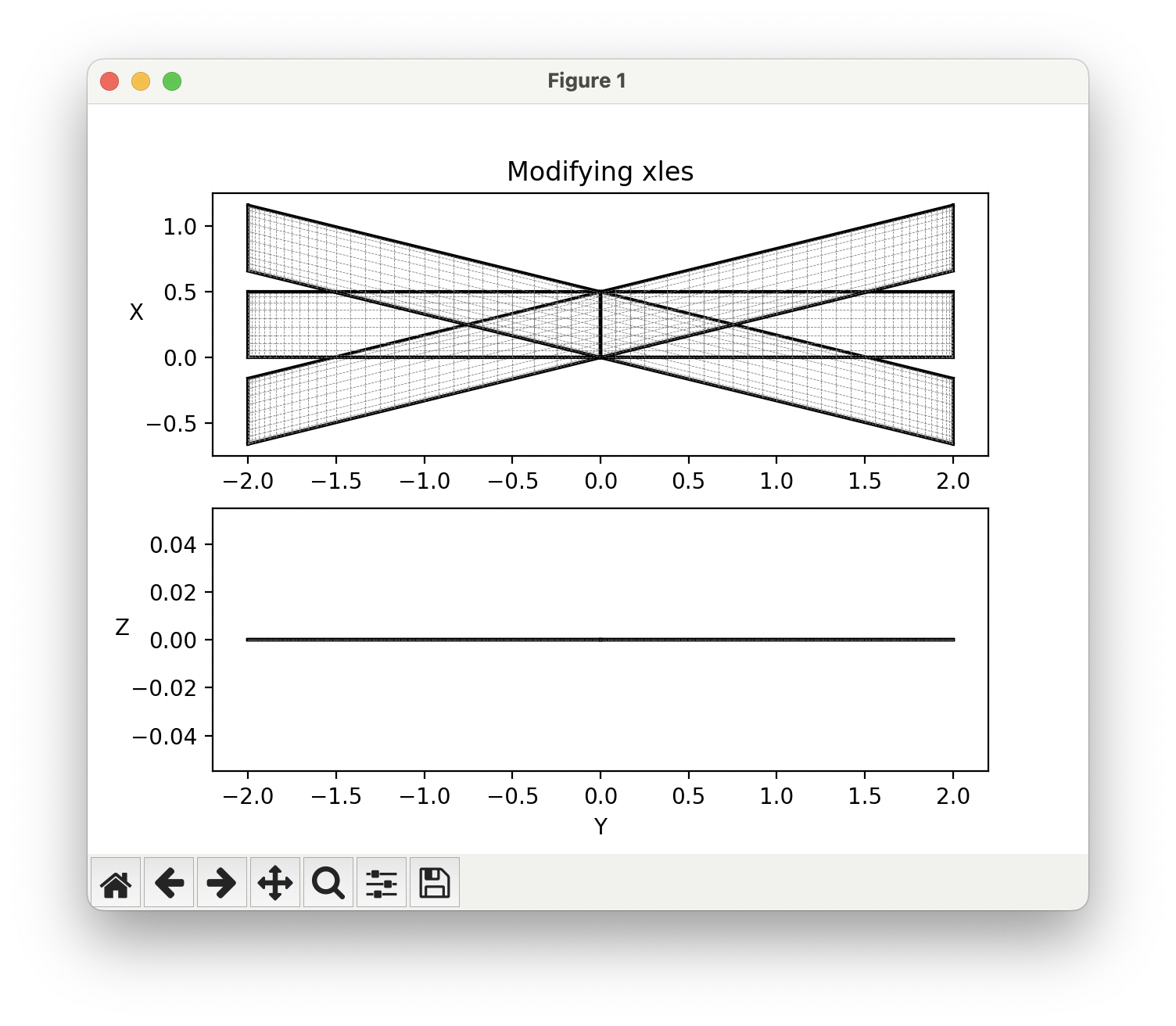

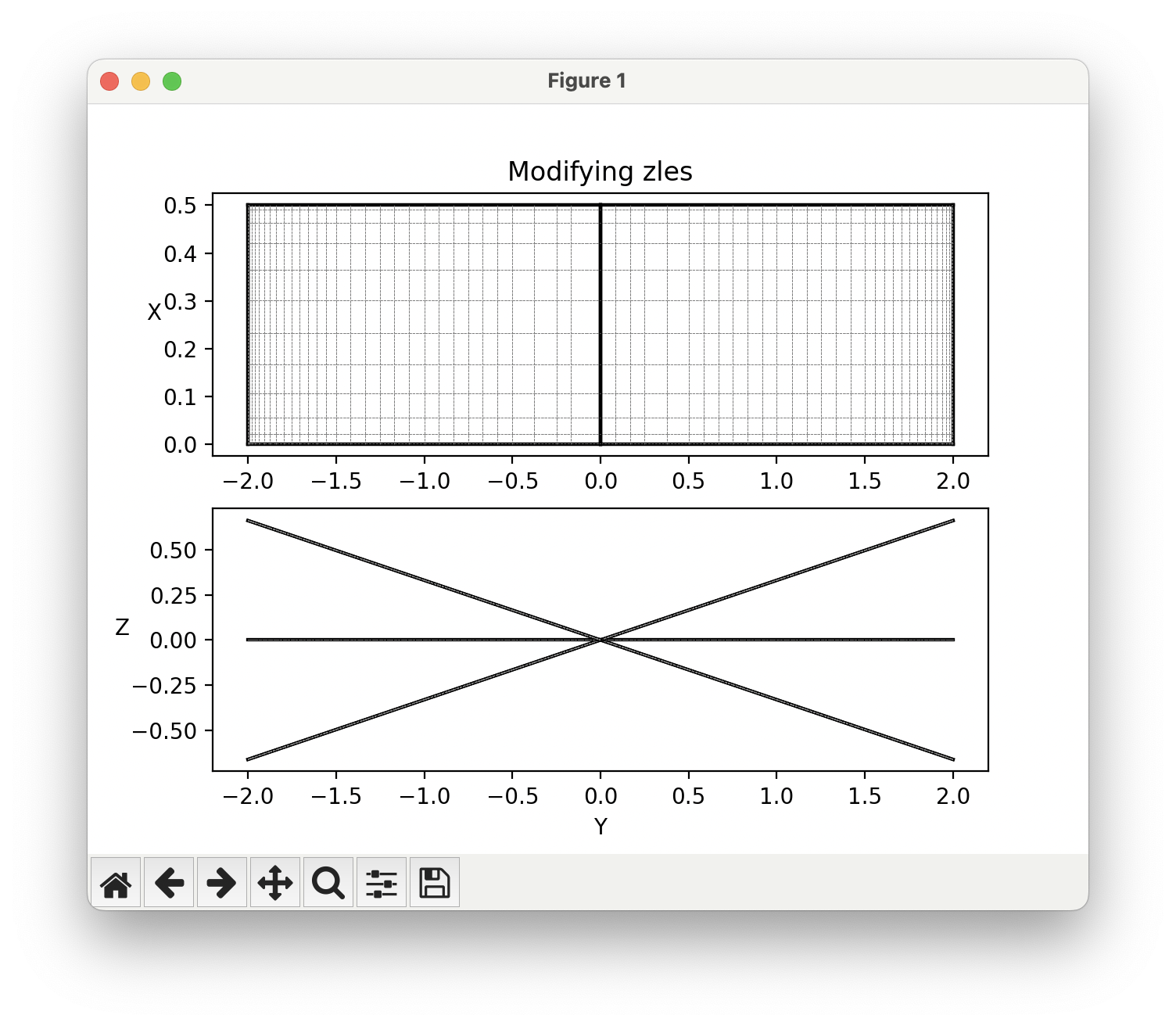

Running the script generates the following plots showing the modifications to the geometry.
